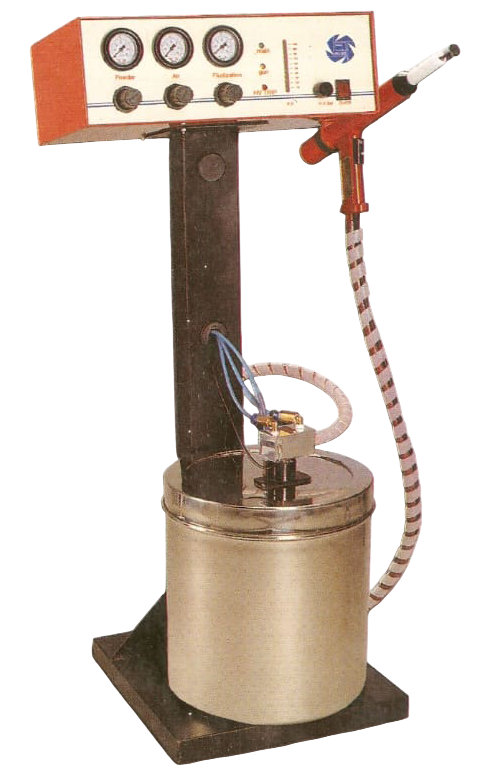

ALLIED 2001
Electrostatic Powder Coating Equipment
Aesthetically elegant, simple to operate, easy to maintain — economically viable & durable for generations.
What Powder Coating Can Do
Powder Coating can replace conventional spray painting, electroplating & anodising because it offers an unmatched combination of durability, aesthetics, and environmental safety.
Why Powder Coating?
Because Powder-Coating is a combination of:
- Perfect Pre-treatment
- Premium Quality Powder
- Perfect Curing Process
- Efficient Equipment to High Quality Standard
An advanced technology delivering superior surface finish that is the defining standard for the 21st century.
We Are Equipped
We have been studying the needs of our esteemed potential customers, job operators, existing clients, and end users of Powder-Coated products for over 17 years.
To build user-friendly and reliable equipment based on comprehensive feedback, our "ALLIED 2001" series is built on exceptionally rewarding interaction with industry professionals. The result is equipment that is aesthetically elegant, simple to operate, easy to maintain, economically viable, and durable for generations.
'Allied 2001' is Different
After sensing the pulse of the market for 17 years, we built powder coating equipment to eliminate all operational shortcomings in existing plants. Our unique features make the difference:
Built-in high voltage generator in the gun generates 90 k.v., improving transfer efficiency and eliminating heavy cable with no voltage drop.
Superior charging performance through the use of both external and internal Multi Electrodes for consistent powder adhesion.
Voltage is reduced automatically, making it easy to coat edges and corners of any article with precision and uniformity.
All gauges and indicators are located on the front and back of the panel for convenient operation and precise control.
The built-in diagnostic system reduces skill requirements for operation and makes the equipment significantly simpler to maintain.
The 'standard' and 'sudarshan' nozzles are technically designed for the most efficient powder flow and superior finish quality.
The powder pump mounted on top of the hopper ensures smooth, puff-free delivery for consistent and uniform coating results.
Corrosion-free stainless steel hopper and powder coated trolley facilitate quick cleaning and easy colour change operations.
Multi Cyclone recovery system delivers optimum powder recovery of 98%, available in Front cut out, Side cutout, and custom configurations.
Technical Specification
| Parameter | Output | Value |
|---|---|---|
| Electrical Input | 230V AC, 50 Hz Single phase with earthing |
— |
| Output Voltage | 90 k.v. (-ve) | — |
| Current | — | 140 µA |
| Compressed Air | 15 NM³/hr. | @ 5 kg/cm² |
| Moisture Content | — | 1.3 mg/cc |
| Oil Content | — | 0.1 ppm |
| Powder Flow | Up to 30 kgs/hr, controllable | |
| Hopper Capacity | 20 kgs (other sizes on request) | |
Technical Specifications are subject to change without prior notice.

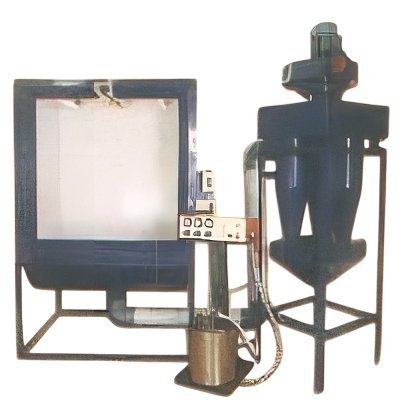

Booth & Recovery System
Multi Cyclone is the best recovery system which gives optimum powder recovery of 98%. The system is available in different models:
- Front cut out
- Side cutout
- Front & Rear with Side cutout
- As per customer specifications

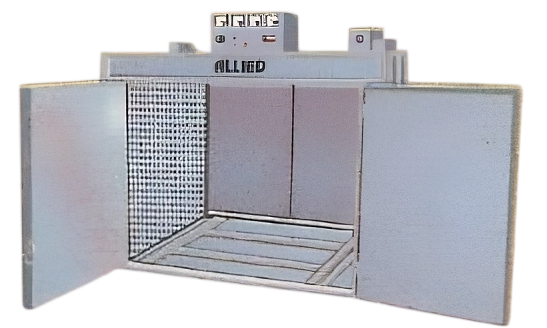

Industrial Oven
Wide range of highly efficient electrical, infra red, gas fired & customer specified ovens available. Engineered for optimal curing performance across all powder coating applications.
Key Components
Multi Electrodes
Faraday Cage Effect
Control Power-Pack
Diagnostic System
Powder Pattern
